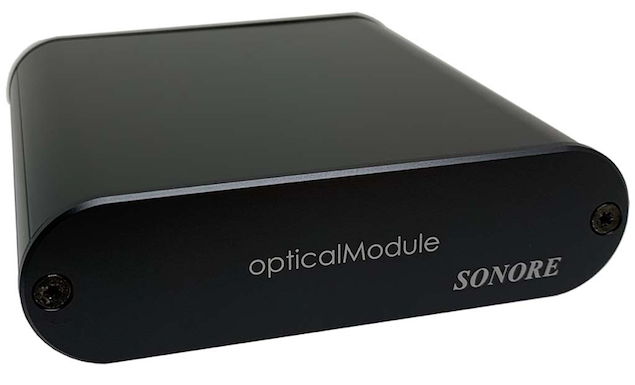

opticalModule Deluxe

The Sonore opticalModule Deluxe is a bi-directional fiber media converter or FMC. The opticalModule has an SFP fiber optic transceiver and an RJ45 connector on the same side. The unit can be used to add fiber-optic networking to your existing wired network or convert your existing fiber optic network to a wired network. The unit can be used with all Sonore products or any other network server or endpoint.

The opticalModule Deluxe is systemOptique Certified.

FEATURES

Supports both 100 speed and 1000 speed network devices
Supports flow control for NAA streaming
Enclosure matches the ultraRendu and opticalRendu
Compatible with the Sonore Rendu (ethernet input with USB output and SPDIF/i2s output)
Compatible with the Sonore endPoint (ethernet input with SPDIF/AES-EBU output)
Compatible with 100 speed Ethernet DACs and DDCs (PS Audio Direct Stream, dCS Network Bridge, etc.)
Compatible with any music server
Improved circuit layout
Supports the use of the Sonore dual faceplate
Includes a link LED
Includes LEDs on the ethernet connector that indicate 100/1000 speed streaming
All connections are on the rear faceplate
Four (4) high-quality ultra low noise linear regulators
Fixed frequency high-quality ultra low jitter FEMTO oscillator
External power input jack
RJ45 connector
systemOptique Certified

SPECIFICATIONS

SFP cage with generic SFP fiber optic transceiver included
Power connector: 2.1mm x 5.5mm (center +)
Power input: 5-9 VDC
Dimension: 3.5"x2.2"x.7"

REAR PANEL IMAGE

TYPICAL USAGE

Optical Ethernet to Cable Ethernet Converter

Cable Ethernet to Optical Ethernet Converter

PURCHASE

Includes: opticalModule Deluxe, generic SFP Fiber Transceiver, Warranty Information, Product Set-Up Instructions
