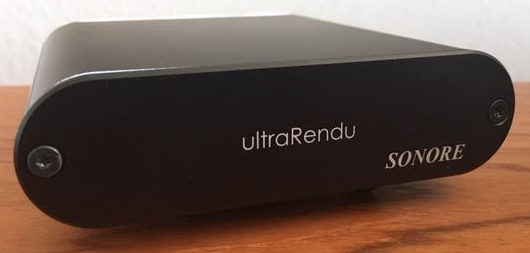

ultraRendu

Inspired by the award winning microRendu

The Sonore ultraRendu project is an extension of the microRendu project that we launched over one year ago. The design is inspired by audiophile gear and meant to bring grace and simplicity to a micro computer. The original microRendu was very small and intended to be hidden out of site behind your other gear. The ultraRendu is in a larger case and perfectly matches the Uptone Audio UltraCap LPS-1 power supply. However, the ultraRendu can still be powered by your favorite power supply because it shares the same power specification as the original. The ultraRendu remains as an Ethernet input and USB Audio output, but all the connectors are now located on the rear of the unit for easy cable routing. The ultraRendu utilizes a new proprietary printed circuit board with only the essential components and some updates to match its ultra designation. The best way to connect the ultraRendu to a USB device is via your favorite USB cable. The ultraRendu is easy to configure, accepts streams from various sources, and includes our new operating system Sonicorbiter 2.5.

Top: Uptone Audio UltraCap (not included)

Bottom: Sonore Computer Audio ultraRendu


SELECTABLE OUTPUT MODES - Sonicorbiter 2.5

  • Mode #1 - SqueezeLite Output - This output works with any Logitech Media Server and compatible controllers. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.

  • Mode #2 - ShairPort Output - This is an AirPlay emulator that utilizes streams sent to it from a compatible source. This output supports true gapless playback of PCM.

  • Mode #3 - MPD/DLNA Output:
    Mode #3a - DLNA Output - This output utilizes streams from UPNP/DLNA servers and controllers. This output can be configured as an OpenHome renderer. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.
    Mode #3b - MPD Output - This output is intended to work with a SMB mount. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.
    Mode #3c - Songcast Output - This output accepts streams from your computer running Linn Songcast. The application is in Beta form.

  • Mode #4 - HQ Player NAA Output - This output utilizes streams from Signalyst's HQ Player running on your computer. Digital signal processing is performed by HQ Player and then asynchronously streamed to the Network Audio Adapter (NAA) output. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.

  • Mode #5 - RoonReady Output - This output utilizes streams from Roon. This output supports true gapless playback of PCM, DSD/DoP, and native DSD.

  • Mode #6 - Spotify Connect Output - This output can be controlled by your computer or tablet running the Spotify application. This application is based on librespot which is a an open source client library for Spotify. The application is in Beta form.

SOFTWARE FEATURES

  • Supports the following PCM sample rates up to: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, and 768kHz
  • Supports the following DSD sample rates up to: DSD64, DSD128, DSD256, DSD512
  • POP free DSD/PCM transitions
  • Not all USB devices or output modes support the maximum sample rate of the unit
  • RoonReady certified
  • Running Logitech Media Server locally allows playback of local radio stations and streaming service
  • Logitech Media Server allows you to use the unit as a UPNP server in combination with Drive Mounter
  • The Software Manager that allows you to install and uninstall apps as needed
  • BubbleUPNP Server app allows any renderer to take advantage of the OhMedia - OpenHome protocol
  • OhMedia - OpenHome protocol allows the Linn Kinsky and Linn Kazoo Apps with playlist support to be used as controllers
  • Supports Tidal and Qobuz lossless streaming in Squeezelite output mode and DLNA output mode
  • Native DSD is supported on select DACs
  • The unit is controlled via third party apps on your mobile device and on your computer
  • Based on Sonicorbiter 2.5 released on 4/20/2017, closed source and open source (GNU -V2)

standard rear faceplate


HARDWARE FEATURES

  • Matching case to the Uptone Audio UltraCap
  • Full linear regulated main board
  • High quality ultra low noise regulator for USB and CPU
  • External power input jack
  • RJ45 input connector
  • USB audio output connector
  • Micro SD port for operating system
  • Fixed frequency ultra low jitter oscillators
  • Multicore processor with DDR3 RAM
  • Power input: 6-9 VDC at 1 Amp min continuous
  • Power connector: 2.1mm x 5.5mm (center +)
  • Dimension without rubber feet: 1.181"(H)x4.331"(W)x4.409"(D)
  • CE, FCC, and RoHS certified (pending certification)

ACCESSORIES

custom front faceplate (sold separately)

RECOMMENDED POWER SUPPLIES

  • iFi iPower power supply - 9VDC
  • CIAudio linear power supply - 9VDC
  • Teddy Pardo linear power supply - 7VDC
  • HD-Plex Linear power supply - adjust to 7VDC
  • Uptone Audio UltraCap LPS-1 power supply - set to 7VDC
  • Uptone Audio JS-2 linear power supply - set to 7VDC
  • Vinnie Rossi LIO with microRendu/ultraRendu output stage
  • Vinnie Rossi LIO MINI PURE-DC-4EVR - set to 7VDC
  • Sonore Signature Series linear power supply - 7VDC

PURCHASE

Pre-order now for September shipment.

Now offering free worldwide shipping.
